Description
24kWh SRNE Single-Phase Solar System+ 33.4Kwh SRNE Lithium Battery
1. Solar Hybrid Inverters — 2 Pcs
2 × SRNE 12kWh / 12kW 48V Single-Phase Solar Hybrid Inverters
Based on the previous SRNE HESP48120S200-H specification:
- Rated output power: 12,000W per inverter
- Maximum output power: 24,000VA per inverter
- Rated output current: 52.2A
- Maximum output current: 54.4A
- 2 MPPT trackers per inverter
- Total installed inverter capacity: 24kW
- Suitable for residential and commercial single-phase applications
- Parallel operation should be confirmed against the exact SRNE model/manual before installation.
2. Lithium Battery Storage — 2 Pcs
2 × 16.7kWh SRNE Lithium Batteries
Total nominal battery storage: 33.4kWh
The previous source document identifies the SRNE EOS battery as approximately 16.07kWh, with:
- Rated voltage: 51.2V
- Capacity: 314Ah
- Battery chemistry: LFP
- Cycle life: 8,000 cycles
- Stated lifetime: 20 years
- Maximum parallel connection: 16 units
- IP65 protection
- Wi-Fi & Bluetooth monitoring
- LCD display
- Floor or wall mounting
- Plug-and-play installation
- Compatible with multiple inverter communication protocols.
3. Solar PV Array

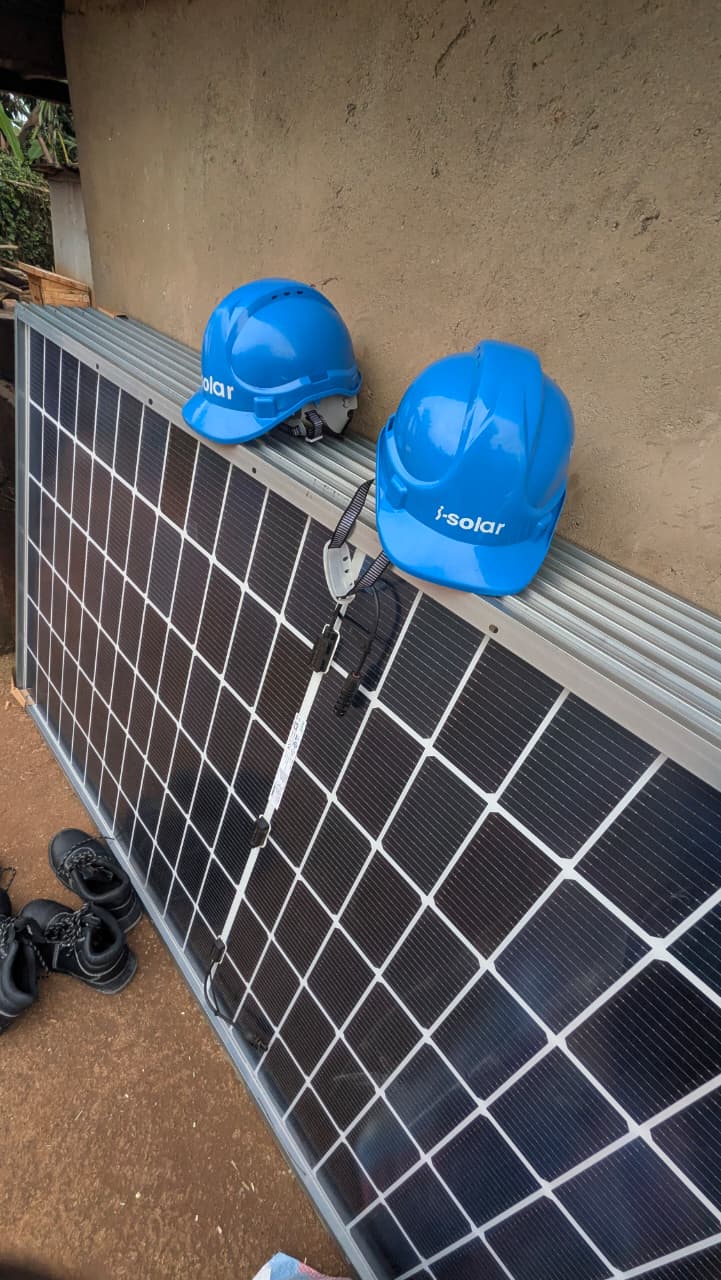

24 × 635W Jinko Bifacial Monocrystalline Solar PV Modules
Total PV capacity: 15.24kWp
Panel specifications from the original system:
- 635W per panel
- Jinko bifacial monocrystalline
- N-type mono
- TOPCon technology
- Up to 24% transfer efficiency
- Bifacial technology
- 25-year warranty.
4. Supporting Installation Components
The system can retain the supporting components from the original configuration, with quantities adjusted where necessary:
- Aluminum solar mounting rails- 12PCS 4.8meters Long Aluminum rails
- Solar PV cables-160 meters 80m RED, 80m BLACK
- Battery cables- 20 meters 10m RED 10m BLACK
- Single-phase automatic changeover switch- 63 Amperes 2 Pole
- DC double-pole breakers- 4 Pcs 125Amperes
- Surge protection device- Double pole 63 Amperes
- Digital automatic voltage regulator- 1pcs
- 12-way combiner box-2pcs
- 4×4 metallic trunking-2pcs
- 25mm flexible conduit- 10 meters
- Cable ties, tapes and cable lugs
- Appropriate AC protection and distribution equipment.
The original system specified 12pcs aluminium mounting rails, 160m of 6mm² PV cable, 20m of 35mm² battery cable, 63A automatic changeover, 125A DC breaker, surge protector, AVR, 12-way combiner and 80m of 10mm² PV cable.
System Summary
| Component | New Configuration |
|---|---|
| Solar inverter | 2 × 12kW SRNE |
| Total inverter capacity | 24kW |
| Lithium battery | 2 × 16.7kWh SRNE |
| Total battery storage | 33.4kWh |
| Solar panels | 24 × 635W Jinko bifacial |
| Total solar PV | 15.24kWp |
| System type | Single Phase Hybrid Solar System |
Key Advantages
- 24kW combined inverter capacity provides substantially higher load-handling capability than the original 12kW configuration.
- 33.4kWh total battery storage provides a larger energy reserve for evening and night-time loads.
- 15.24kWp bifacial solar array provides substantial daytime energy generation.
- Dual-inverter configuration provides greater system capacity and allows the system to be designed around multiple inverter units.
- LFP lithium technology offers long cycle life and low maintenance.
- Bifacial Jinko panels can generate energy from both the front and rear sides when installation conditions allow.
- Smart battery monitoring through Wi-Fi/Bluetooth is available on the referenced SRNE EOS battery.
- The system is suitable for homes, offices, shops, businesses and other applications requiring higher single-phase power capacity.
