Description

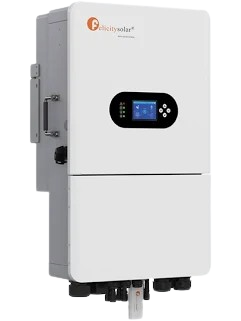

22KVA / 20kW Three-Phase Felicity Solar Hybrid Inverter

Model: IVGM20KLP3G1 | 48V Battery System | IP65 Protection | On-Grid & Off-Grid Operation

1. Product Description

The Felicity Solar IVGM20KLP3G1 22KVA / 20kW Three-Phase Hybrid Solar Inverter is a powerful, intelligent, and versatile energy management solution designed for residential, commercial, and light-industrial applications that require reliable three-phase electricity. With a rated output of 20kW and a 22KVA apparent power rating, this inverter provides an efficient solution for powering multiple electrical appliances, machinery, and other three-phase loads using solar energy, battery storage, and the utility grid or a compatible generator.

Designed to support both on-grid and off-grid solar applications, the inverter enables users to generate their own electricity, store surplus solar energy in batteries, and reduce dependence on conventional electricity sources. Its integrated Maximum Power Point Tracking (MPPT) solar charge controllers efficiently manage energy harvested from the solar panels, helping maximise solar energy utilisation throughout the day.

The inverter features a substantial 32,000W maximum PV input capacity, distributed across two 16,000W MPPT channels, allowing it to accommodate a sizeable solar array. With four PV input ports, a wide solar input voltage range of 160–650V DC per MPPT channel, and a maximum input current of 36A + 36A, it offers flexibility when designing a solar installation to suit the property’s energy consumption requirements.

Operating with a 48V battery system, the IVGM20KLP3G1 can be integrated with a compatible 48V lithium or other approved battery bank to provide energy storage for use during the evening, at night, or when solar generation is insufficient. Its IP65-rated enclosure provides protection against dust and water jets, making it suitable for appropriately selected indoor and outdoor installation environments.

The inverter also supports Wi-Fi connectivity through its Wi-Fi module, enabling remote system monitoring and convenient access to operating information, subject to the manufacturer’s monitoring platform and configuration requirements.

Whether installed in a commercial building, workshop, agricultural facility, office complex, or large residential property, the Felicity Solar IVGM20KLP3G1 offers a flexible foundation for building a modern three-phase solar power system.

2. Technical Specifications

Specification	Description
Brand	Felicity Solar
Model	IVGM20KLP3G1
Inverter Type	Three-Phase Hybrid Solar Inverter
Rated Apparent Power	22KVA
Rated Active Power	20kW
Battery System Voltage	48V DC nominal
Operating Modes	On-grid and off-grid
Maximum PV Input Power	32,000W (32kW)
Built-in MPPT Capacity	2 × 16,000W
Number of MPPT Channels	2
Number of PV Input Ports	4
PV Input Voltage Range	160–650V DC per MPPT channel, as specified
Maximum PV Input Current	36A + 36A
Recommended Panel Capacity	Up to 48 solar panels, depending on module wattage and final string design
Compatible Solar Panel Range	550W–700W modules, subject to electrical compatibility
Solar Panel Configuration	12 + 12 panels per MPPT channel, subject to string-design verification
Enclosure Protection	IP65
Monitoring	Wi-Fi module
Battery Compatibility	Compatible 48V battery bank, subject to manufacturer requirements
Applications	Residential, commercial, agricultural and light-industrial installations

Important design note: The specifications above reflect the information provided for the model. Before installation, confirm the manufacturer’s datasheet for the exact MPPT voltage and current limits, the four PV port arrangement, allowable PV oversizing, and the maximum recommended PV power.

3. High-Capacity 32kW Solar Input

One of the key features of the IVGM20KLP3G1 is its stated maximum solar PV input capacity of 32,000W.

The integrated MPPT system is rated at 16,000W per MPPT channel, giving a combined capacity of 32,000W. This allows the inverter to support a substantial solar array when correctly designed and installed.

The inverter can be configured with solar modules rated between 550W and 700W, provided the voltage, current, and power limits specified by the manufacturer are respected.

For example, using 48 solar panels rated at 635W each gives:

• Number of solar panels: 48
• Wattage per panel: 635W
• Total installed solar capacity: 48 × 635W
• Total solar array capacity: 30,480W (30.48kWp)

This configuration provides a substantial solar generation capacity for daytime consumption, battery charging, and other supported operating requirements.

Actual energy production will depend on sunshine availability, panel orientation, shading, temperature, installation conditions, and system configuration.

4. Dual MPPT Technology for Efficient Solar Generation

The inverter incorporates two Maximum Power Point Tracking (MPPT) channels, each rated at 16,000W according to the supplied specifications.

MPPT technology continuously adjusts the electrical operating point of the solar array to extract available power efficiently as sunlight and panel temperatures change.

The dual-MPPT arrangement can provide greater flexibility when designing a solar array with different roof orientations or separate panel groups, provided the electrical characteristics of each string meet the inverter’s requirements.

The four PV input ports facilitate solar string connections, but they should not automatically be interpreted as four independent MPPT trackers. The supplied specifications indicate two MPPT channels, so the final string arrangement must follow the manufacturer’s wiring diagram.

Benefits of the MPPT system

• Helps maximise energy harvested from the solar panels.
• Supports efficient solar energy conversion under changing weather conditions.
• Enables a substantial solar array to be connected to the inverter.
• Helps supply daytime electrical loads while supporting battery charging.
• Provides flexibility when arranging solar strings across suitable roof sections or mounting structures.

5. Three-Phase 20kW Power Output

The IVGM20KLP3G1 is designed for applications that require three-phase electrical power.

With a rated active power of 20kW and an apparent power rating of 22KVA, it can support a wide range of electrical equipment when the loads are correctly sized and distributed.

Three-phase power is particularly useful for installations with compatible motors, pumps, workshop equipment, and commercial machinery.

Suitable applications include:

• Commercial buildings and offices.
• Hotels, lodges, and hospitality facilities.
• Workshops and manufacturing premises.
• Agricultural facilities and irrigation systems.
• Water pumping installations.
• Shops, supermarkets, and commercial outlets.
• Residential properties with three-phase electrical connections.
• Small industrial facilities with compatible electrical loads.

Important: The 22KVA rating does not mean that every appliance or motor can be operated simultaneously without limitation. Actual performance depends on the inverter’s continuous output rating, phase-load limits, starting surge capability, power factor, and the electrical requirements of connected equipment. Heavy motor loads must be checked against the manufacturer’s surge specifications.

6. On-Grid and Off-Grid Hybrid Operation

The inverter’s hybrid functionality allows solar generation, battery storage, and a compatible grid or generator supply to be coordinated according to the available operating modes and configuration.

On-grid operation

When configured for grid-connected operation, the inverter can work with the utility supply to manage solar energy and electrical loads. Depending on the selected operating mode, installation requirements, and grid settings, available solar power may be used to supply loads and charge the batteries.

Any export of excess solar electricity to the utility grid depends on the inverter configuration, applicable approvals, and the local electricity provider’s requirements.

Off-grid operation

In off-grid mode, the inverter can provide electricity to supported loads using available solar generation and stored battery energy without relying on the utility grid as the primary source.

This mode can be useful for locations where grid electricity is unavailable, unreliable, or expensive.

Hybrid energy management

The system can be configured to prioritise available energy sources according to supported settings, load requirements, and battery-management parameters.

This flexibility can help users:

• Reduce dependence on utility electricity.
• Make better use of available solar energy.
• Store surplus solar energy for later consumption.
• Maintain power to supported loads during grid interruptions when correctly configured.
• Improve control over energy consumption and operating costs.

The precise switching behaviour and supported combinations of grid, generator, PV, and battery power should be verified against the manufacturer’s manual.

7. Compatibility with a 48V Battery Bank

The inverter operates with a nominal 48V battery system, allowing the installation to incorporate a suitably sized battery bank for energy storage.

A compatible lithium battery bank can store excess solar energy generated during the day and release it when solar production falls, including during the evening and at night.

The actual storage capacity required depends on the property’s energy consumption, desired backup duration, battery discharge limits, and the availability of other energy sources.

Advantages of battery storage

• Provides access to stored solar energy after sunset.
• Supports backup power for selected loads during grid interruptions.
• Helps reduce reliance on grid electricity during periods of low solar generation.
• Improves the utilisation of solar electricity generated during the day.
• Allows the solar system to be designed around the user’s daily energy requirements.

The battery bank must be compatible with the inverter’s voltage, charging-current limits, communication protocol, and battery-management requirements. Lithium batteries should be connected and configured according to the manufacturer’s instructions.

Battery sizing consideration: A 20kW inverter can draw substantial current from a 48V battery bank when supplying high loads. The battery bank must therefore be designed to provide the required continuous discharge current and surge capacity. The installer should calculate battery current requirements and confirm that the combined battery and BMS ratings can support the intended loads.

8. IP65 Protection for Installation Flexibility

The inverter carries an IP65 enclosure protection rating, indicating that its enclosure is dust-tight and protected against water jets under specified test conditions.

This rating offers an advantage in installations where the equipment may be exposed to dust or occasional water splashes from cleaning or weather.

Potential installation locations include appropriately selected utility rooms, commercial premises, workshops, and protected outdoor equipment areas.

For reliable operation, the inverter should still be installed in accordance with the manufacturer’s requirements for temperature, ventilation, mounting orientation, direct sunlight, clearances, and weather exposure.

IP65 protection does not mean the inverter is suitable for immersion in water or for installation in every outdoor environment without additional precautions.

9. Wi-Fi Monitoring and System Management

The supplied configuration includes a Wi-Fi monitoring module, providing a convenient way to monitor system performance where the manufacturer’s monitoring platform and network requirements are supported.

Depending on the monitoring application and inverter configuration, users may be able to access information such as solar generation, battery status, power output, grid operation, and system alarms.

Monitoring advantages

• Convenient access to system operating information.
• Easier tracking of solar generation and energy utilisation.
• Helps identify operating issues and system alerts.
• Supports maintenance and performance checks.
• Improves visibility into the performance of the installed solar system.

Availability of specific monitoring functions depends on the manufacturer’s software, communications setup, internet connection, and inverter firmware.

10. Major Advantages of the Felicity Solar IVGM20KLP3G1

1. High-power output

The 20kW rated active power makes the inverter suitable for many commercial and larger residential installations that require three-phase electricity.

2. Large solar input capacity

The stated 32kW PV input capacity allows a substantial solar array to be installed, helping support daytime loads and battery charging.

3. Dual MPPT technology

Two MPPT channels provide flexibility in solar array design and help maximise energy harvesting when the array is correctly configured.

4. Hybrid energy management

On-grid and off-grid operating capabilities offer flexibility for properties that need to combine solar power, battery storage, and an available grid or compatible generator supply.

5. Battery energy storage

The 48V battery architecture allows energy storage to be incorporated for evening consumption and backup applications.

6. Three-phase compatibility

The inverter is designed for three-phase installations, making it relevant to commercial facilities, workshops, agricultural operations, and compatible motor-driven equipment.

7. IP65 enclosure protection

The dust-tight enclosure and protection against water jets provide additional installation flexibility when the manufacturer’s environmental requirements are observed.

8. Wi-Fi monitoring

Supported remote monitoring allows users to track system operation and access performance information conveniently.

9. Reduced grid dependence

By using solar electricity directly and storing surplus energy when appropriate, the system can reduce the amount of electricity purchased from the utility provider.

10. Flexible system design

The combination of solar generation, battery storage, and hybrid operating modes enables the system to be designed around the property’s energy usage and backup requirements.

11. Recommended Solar System Configuration

A suitable solar installation can be designed around the following example configuration:

Component	Proposed Specification
Hybrid inverter	1 × Felicity Solar IVGM20KLP3G1
Inverter rating	22KVA / 20kW three-phase
Maximum PV input	32,000W, subject to manufacturer confirmation
Solar panels	48 × 635W Jinko solar panels
Total solar capacity	30.48kWp
Battery bank	Compatible 48V lithium battery bank, sized to the required backup duration
Monitoring	Wi-Fi module
Solar mounting	Suitable rooftop or ground-mounted structure
Protection equipment	Appropriately rated DC and AC isolators, overcurrent protection, surge protection, and earthing
Installation	Professional installation, commissioning, and testing

The proposed 48-panel arrangement is an example, not a final electrical design. The installer must verify the inverter’s permitted string voltage and current, the allocation of strings to MPPT channels, the module’s open-circuit voltage at the lowest expected temperature, and the maximum permitted PV input power.

12. Applications and Recommended Uses

The Felicity Solar IVGM20KLP3G1 can be considered for installations with significant daytime electricity demand and a need for three-phase power.

Commercial buildings: Supports compatible lighting, office equipment, refrigeration, and other electrical loads.

Agricultural facilities: Can be considered for compatible water pumps, farm equipment, and other agricultural loads after motor starting and operating requirements have been checked.

Workshops: Suitable for evaluating solar power solutions for compatible workshop machinery and equipment.

Hotels and hospitality facilities: Can support selected electrical loads, depending on the site’s total demand and the distribution of loads across the three phases.

Residential properties: Offers a potential solution for larger homes with three-phase connections and appropriately sized battery storage.

Light-industrial premises: Can form part of a solar energy system designed for compatible machinery and equipment within the inverter’s electrical limits.

13. Conclusion

The Felicity Solar IVGM20KLP3G1 22KVA / 20kW Three-Phase Hybrid Solar Inverter is a versatile energy conversion and management solution for commercial, agricultural, residential, and light-industrial applications.

Its key features include a 20kW rated output, a 32kW stated maximum solar PV input, dual MPPT channels, 48V battery compatibility, on-grid and off-grid operation, IP65 enclosure protection, and Wi-Fi monitoring.

When paired with a correctly designed solar array, a compatible battery bank, and properly rated electrical protection equipment, it can help users maximise solar energy utilisation, reduce dependence on utility electricity, and provide backup power for supported loads.

For the best results, the solar array, battery bank, and connected loads should be professionally sized to the manufacturer’s verified specifications and the property’s energy requirements.
